STAINLESS STEEL & GLASS RAILINGS | TUBE PLUGS & TUBE ENDS

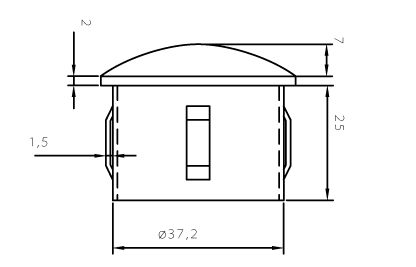

Click image for line drawing

code	material	dimensions	for tube	kg
E4094	AISI 316	101.6 mm	2.0 ‚ 2.6 mm	0.320
E4093	AISI 316	76.1 mm	2.0 ‚ 2.6 mm	0.156
E4092	AISI 316	60.3 mm	2.0 ‚ 2.6 mm	0.078
E4091	AISI 316	48.3 mm	2.0 ‚ 2.6 mm	0.056
E4090	AISI 316	42.4 mm	2.0 ‚ 2.6 mm	0.048
E40957	AISI 316	40.0 mm	1.5 ‚ 2.6 mm	0.050
E40956	AISI 316	33.7 mm	1.6 ‚ 2.6 mm	0.032
E40955	AISI 316	30.0 mm	1.5 ‚ 2.6 mm	0.022
E40954	AISI 316	26.9 mm	1.6 ‚ 2.6 mm	0.018
E40953	AISI 316	21.3 mm	1.6 ‚ 2.6 mm	0.020
E40952	AISI 316	20.0 mm	1.0 ‚ 2.0 mm	0.008
E40951	AISI 316	16.0 mm	1.0 ‚ 2.0 mm	0.006
E40950	AISI 316	12.0 mm	1.0 mm	0.004

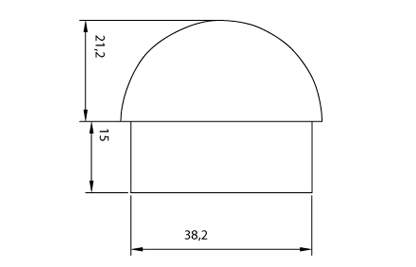

Click image for line drawing

code	material	dimensions	kg
E464	AISI 316	33.7 x 2.0 mm	0.064
E464-26	AISI 316	33.7 x 2.6 mm	0.068
E465	AISI 316	42.4 x 2.0 mm	0.090
E465-26	AISI 316	42.4 x 2.6 mm	0.098
E466	AISI 316	48.3 x 2.0 mm	0.118
E466-26	AISI 316	48.3 x 2.6 mm	0.118
E467	AISI 316	60.3 x 2.0 mm	0.230
E467-26	AISI 316	60.3 x 2.6 mm	0.226

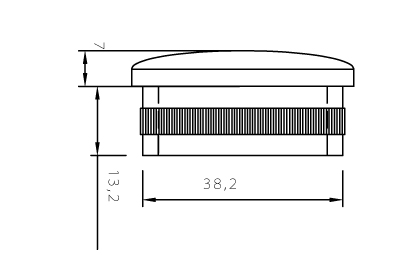

Click image for line drawing

code	material	dimensions	kg
E4115	AISI 316	33.7 ¯ x 2.0 mm	0.052
E4115/26	AISI 316	33.7 ¯ x 2.6 mm	0.048
E4120	AISI 316	42.4 ¯ x 2.0 mm	0.080
E4120/26	AISI 316	42.4 ¯ x 2.6 mm	0.068
E4135	AISI 316	48.3 ¯ x 2.0 mm	0.092

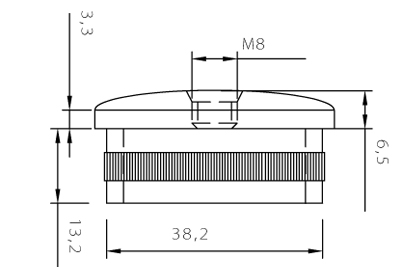

Click image for line drawing

code	material	dimensions	kg
E4116	AISI 316	33.7 ¯ x 2.0 mm with M8 hole	0.054
E4116/26	AISI 316	33.7 ¯ x 2.6 mm with M8 hole	0.042
E4130	AISI 316	42.4 ¯ x 2.0 mm with M8 hole	0.080
E4130/26	AISI 316	42.4 ¯ x 2.6 mm with M8 hole	0.068
E4136	AISI 316	48.3 ¯ x 2.0 mm with M8 hole	0.094
E4136/26	AISI 316	48.3 ¯ x 2.6 mm with M8 hole	0.082

Click image for line drawing

code	material	dimensions	kg
E4110	AISI 316	42.4 x 2.0 mm with M8 hole	0.080
E4110/26	AISI 316	42.4 x 2.6 mm with M8 hole	0.062

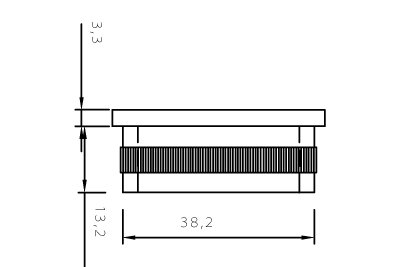

Click image for line drawing

code	material	dimensions	kg
E4102	AISI 316	21.3 x 2.0 mm	0.024
E41021	AISI 316	26.9 x 2.0 mm	0.032
E4103	AISI 316	30.0 x 2.0 mm	0.042
E4104	AISI 316	33.7 x 2.0 mm	0.050
E4100	AISI 316	42.4 x 2.0 mm	0.080
E4100/26	AISI 316	42.4 x 2.6 mm	0.066
E4105	AISI 316	48.3 x 2.0 mm	0.088
E4106	AISI 316	60.3 x 2.0 mm	0.138
E4107	AISI 316	76.1 x 2.0 mm	0.192
E4108	AISI 316	88.9 x 2.0 mm	0.270
E4109	AISI 316	101.6 x 2.0 mm	0.308

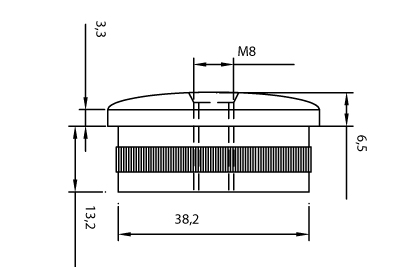

Click image for line drawing

code	material	dimensions	kg
E4143	AISI 316	33.7 ¯ x 2.0 mm with M8 hole	0.096
E4144	AISI 316	42.4 ¯ x 2.0 mm with M8 hole	0.162

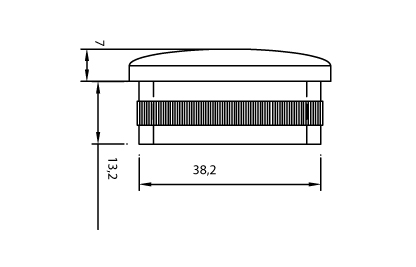

Click image for line drawing

code	material	dimensions	kg
E4139	AISI 316	33.7 ¯ x 2.0 mm	0.106
E4140	AISI 316	40.0 ¯ x 2.0 mm	0.150
E4141	AISI 316	42.4 ¯ x 2.0 mm	0.170
E4142	AISI 316	48.3 ¯ x 2.0 mm	0.260

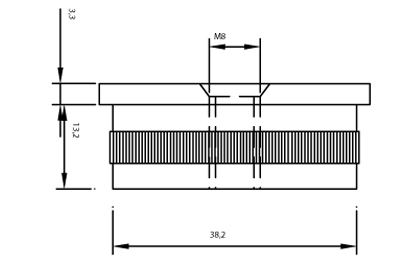

Click image for line drawing

code	material	dimensions	kg
E4148	AISI 316	33.7 ¯ x 2.0 mm with M8 hole	0.090
E4149	AISI 316	42.4 ¯ x 2.0 mm with M8 hole	0.160

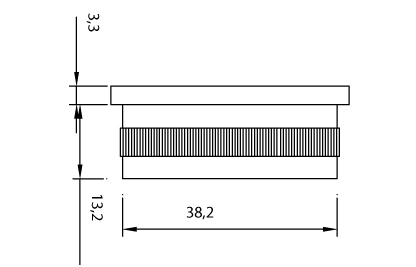

Click image for line drawing

code	material	dimensions	kg
E41451	AISI 316	33.7 ¯ x 2.0 mm	0.096
E4145	AISI 316	40.0 ¯ x 2.0 mm	0.138
E4146	AISI 316	42.4 ¯ x 2.0 mm	0.158
E4147	AISI 316	48.3 ¯ x 2.0 mm	0.212

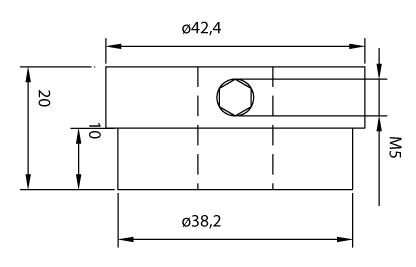

Click image for line drawing

code	material	dimensions	kg
E4185	AISI 316	ÿ 33.7 x 2.0 mm with hole 12.2 mm	0.112
E4186	AISI 316	ÿ 42.4 x 2.0 mm with hole 12.2 mm	0.196
E4187	AISI 316	ÿ 48.3 x 2.0 mm with hole 12.2 mm	0.258

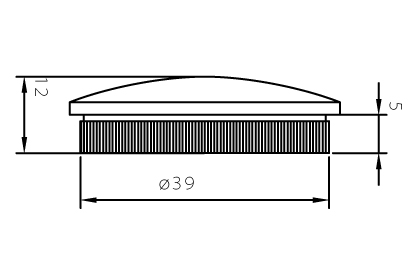

Click image for line drawing

code	material	dimensions	kg
E01153	1.4305 (AISI 304)	26.9 ¯ x 2.0 mm	0.024
E0115	1.4305 (AISI 304)	33.7 ¯ x 2.0 mm	0.040
E01151	1.4305 (AISI 304)	42.4 ¯ x 2.0 mm	0.060
E01152	1.4305 (AISI 304)	48.3 ¯ x 2.0 mm	0.094
E01154	1.4305 (AISI 304)	60.3 ¯ x 2.0 mm	0.150

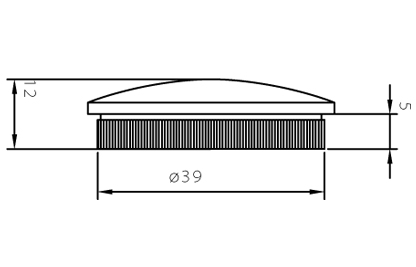

Click image for line drawing

code	material	dimensions	kg
E01171	1.4305 (AISI 304)	21.3 ¯ x 2.0 mm	0.018
E01172	1.4305 (AISI 304)	26.9 ¯ x 2.0 mm	0.034
E0117	1.4305 (AISI 304)	33.7 ¯ x 2.0 mm	0.054
E0119	1.4305 (AISI 304)	42.4 ¯ x 2.0 mm	0.086
E01191	1.4305 (AISI 304)	48.3 ¯ x 2.0 mm	0.122
E01173	1.4305 (AISI 304)	60.3 ¯ x 2.0 mm	0.196

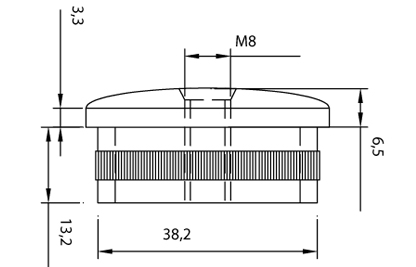

Click image for line drawing

code	material	dimensions	hole	kg
E01195	1.4305 AISI 304	33.7 ¯ x 2.0 mm	M8	0.082
E01196	1.4305 AISI 304	42.4 ¯ x 2.0 mm	M8	0.142
E011961	1.4305 AISI 304	48.3 ¯ x 2.0 mm	M8	0.192
E01195/12.2	1.4305 AISI 304	33.7 ¯ x 2.0 mm	12.2 mm	0.128
E01196/12.2	1.4305 AISI 304	42.4 ¯ x 2.0 mm	12.2 mm	0.130

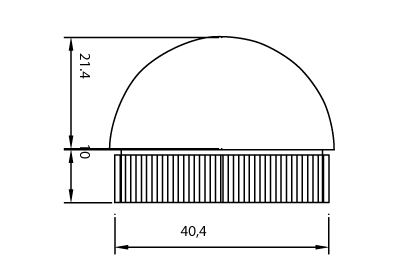

Click image for line drawing

code	material	dimensions	kg
E01111	1.4305 AISI 304	33.7 x 2.0 mm	0.124
E01112	1.4305 AISI 304	42.4 x 2.0 mm	0.230
E01116	1.4305 AISI 304	48.3 x 2.0 mm	0.334

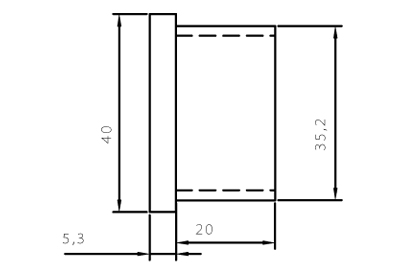

Click image for line drawing

code	material	dimensions	kg
E4200	AISI 316	20 x 20 x 1.5 mm	0.034
E4210	AISI 316	25 x 25 x 2.0 mm	0.050
E4220	AISI 316	30 x 30 x 2.0 mm	0.050
E4230	AISI 316	40 x 40 x 2.0 mm	0.100
E4240	AISI 316	50 x 50 x 2.0 mm	0.160
E4250	AISI 316	60 x 60 x 2.0 mm	0.238

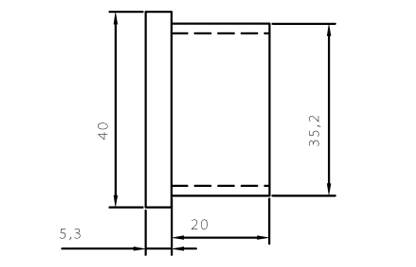

Click image for line drawing

code	material	dimensions	kg
E4251	AISI 316	30 x 20 x 2.0 mm	0.042
E4252	AISI 316	40 x 20 x 2.0 mm	0.054
E4253	AISI 316	40 x 30 x 2.0 mm	0.014
E4254	AISI 316	50 x 30 x 2.0 mm	0.090
E4255	AISI 316	60 x 40 x 2.0 mm	0.144

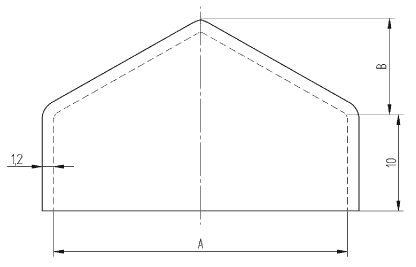

Click image for line drawing

code	material	dimensions	kg
E4150	AISI 316	30 x 30 mm	0.018
E4151	AISI 316	40 x 40 mm	0.030
E4152	AISI 316	50 x 50 mm	0.042
E4153	AISI 316	60 x 60 mm	0.066
E4154	AISI 316	80 x 80 mm	0.092
E4155	AISI 316	100 x 100 mm	0.130
E4156	AISI 316	70 x 70 mm	0.070
E4157	AISI 316	90 x 90 mm	0.110
E0390 / K 240	AISI 304	30 x 30 mm	0.018
E0391 / K 240	AISI 304	40 x 40 mm	0.038
E0392 / K 240	AISI 304	50 x 50 mm	0.036
E0393 / K 240	AISI 304	60 x 60 mm	0.066
E0394 / K 240	AISI 304	80 x 80 mm	0.060
E0395 / K 240	AISI 304	100 x 100 mm	0.162
E0396 / K 240	AISI 304	120 x 120 mm	0.240
E0397 / K 240	AISI 304	150 x 150 mm	0.350

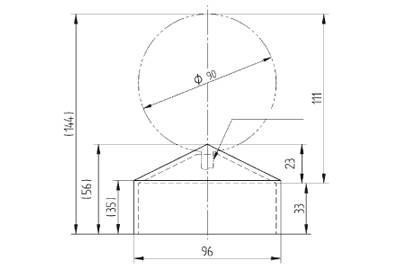

Click image for line drawing

code	material	dimensions	a	b	kg
E4160	AISI 316	Inside dimensions 90 x 90 mm	140 mm	35 mm	1.032
E4165	AISI 316	Inside dimensions 90 x 90 mm	50 mm	35 mm	0.468

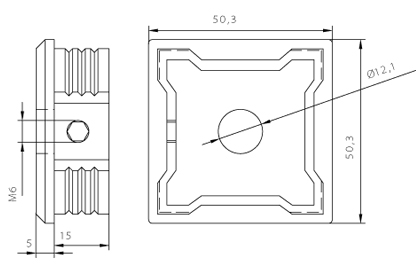

Click image for line drawing

code	material	dimensions	for tube	kg
E4191/122	AISI316	30 x 30 x 2.0 mm	12.2 mm	0.062
E4192/122	AISI316	40 x 40 x 2.0 mm	12.2 mm	0.100
E4193/122	AISI316	50 x 50 x 2.0 mm	12.2 mm	0.132

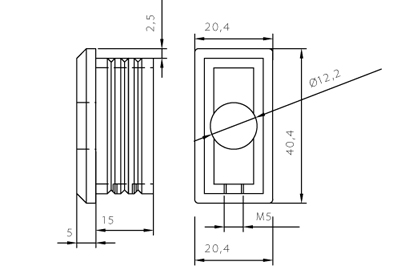

Click image for line drawing

code	material	dimensions	for hole	kg
E4195/122	AISI 316	40 x 20 x 2.0 mm	12.2 mm	0.046
E4198/122	AISI 316	60 x 40 x 2.0 mm	12.2 mm	0.130
